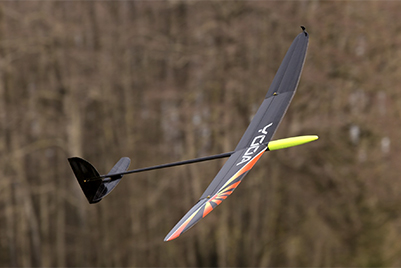

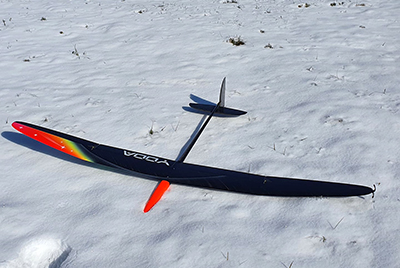

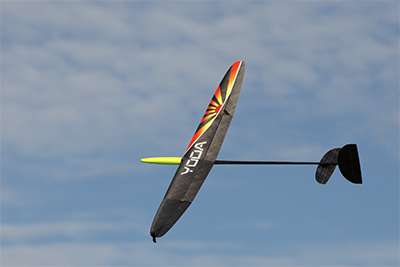

The YODA F3K is the latest model designed by Joe Wurts featuring a polyhedral wing along with a specially-designed airfoil signalling the smallest lift.

The wing features an extra-wide set of flaps for extra slow landings, while the low-drag airfoil is optimized to achieve the highest launches.

The YODA F3K features a strong, streamlined fuselage providing superior rigidity due to it's wider shape and Ultra High Module Carbon preform Carboline.

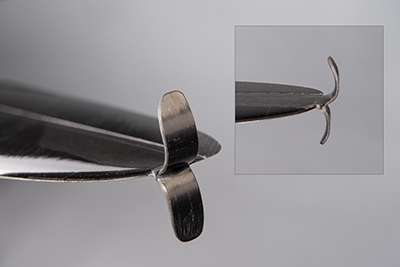

YODA F3K traveling made easy! Just remove the outer wing panel (coming soon) and vertical fin (both plug-in)!

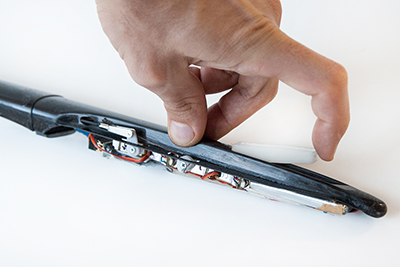

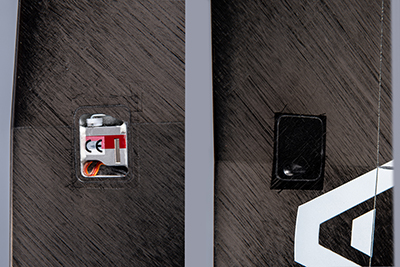

The flaps connect via slop-free ball links directly to pushrods. Ailerons have their own servos in the wing and are top-drive actuated. Two small servos in the nose control rudder and elevator via a pull-spring setup.

Expert pilots can take advantage of the High Modulus (HM) Carbon and Strong wing layup versions, providing more rigidity compared to the standard wing layup.

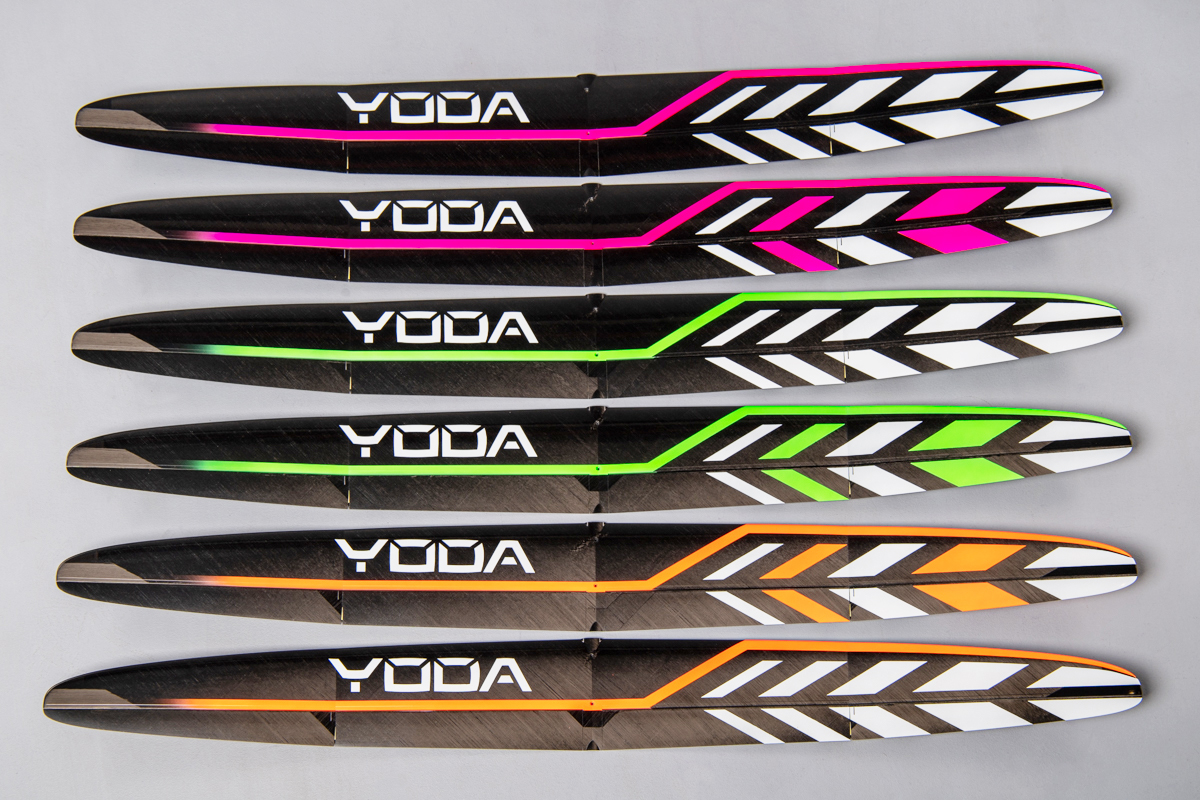

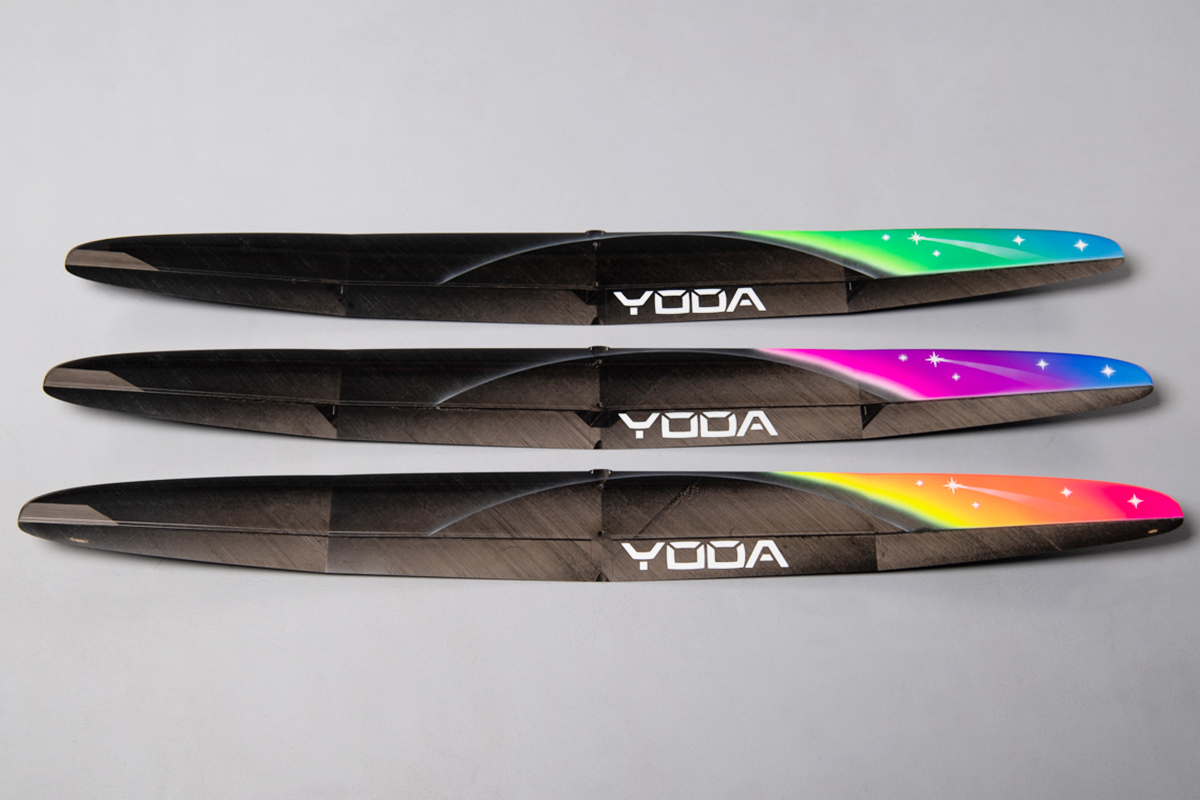

Top Wing Pattern Options:

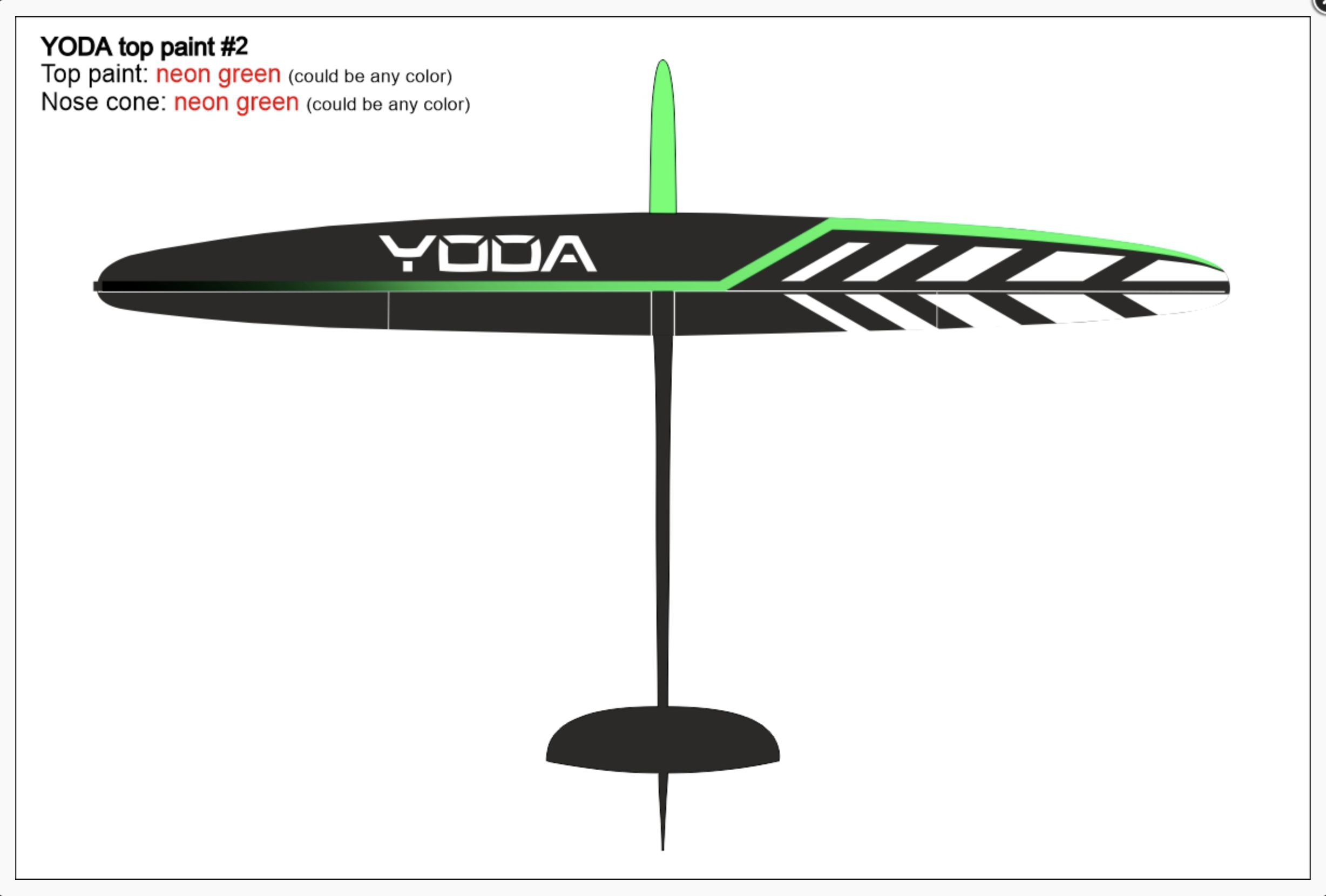

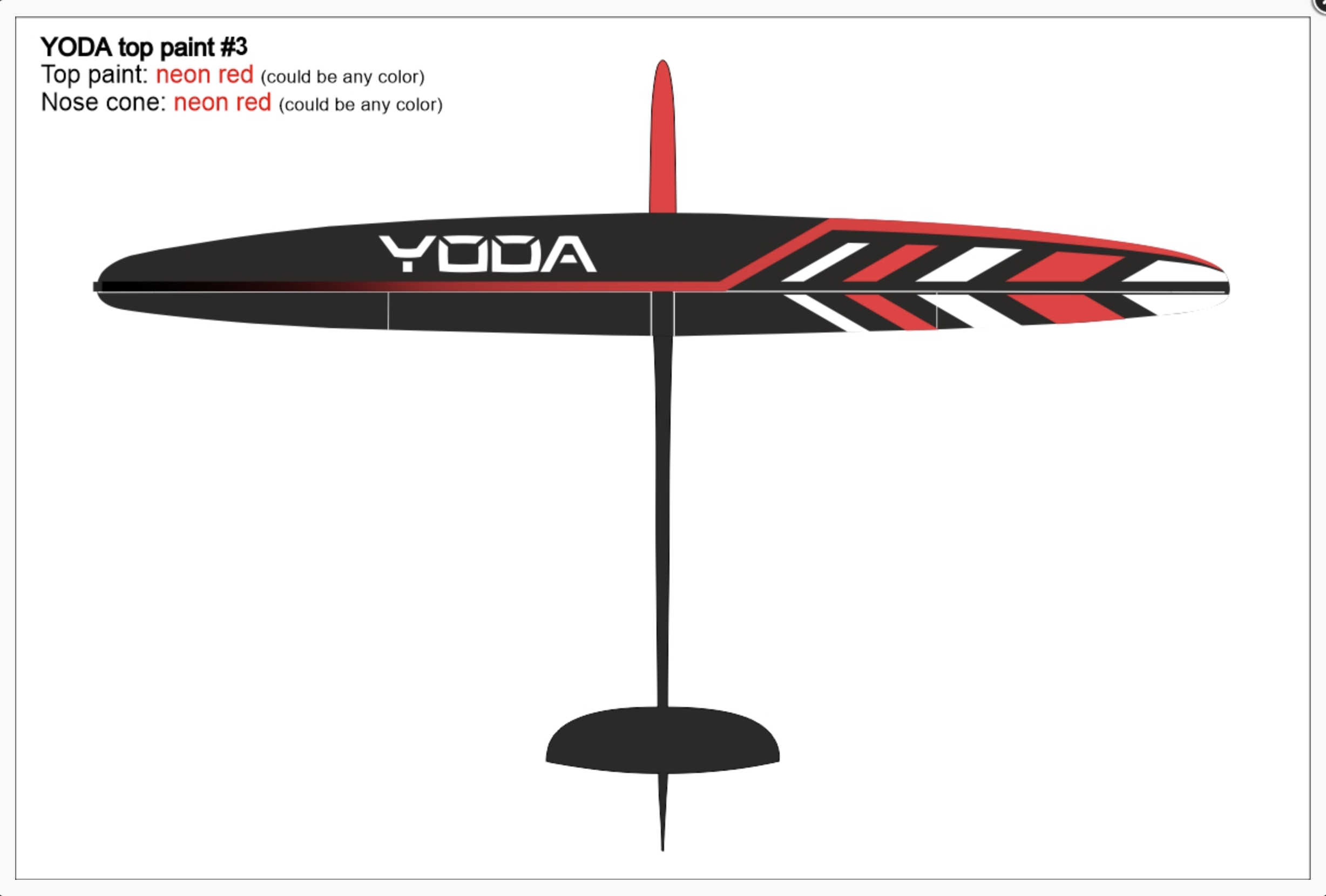

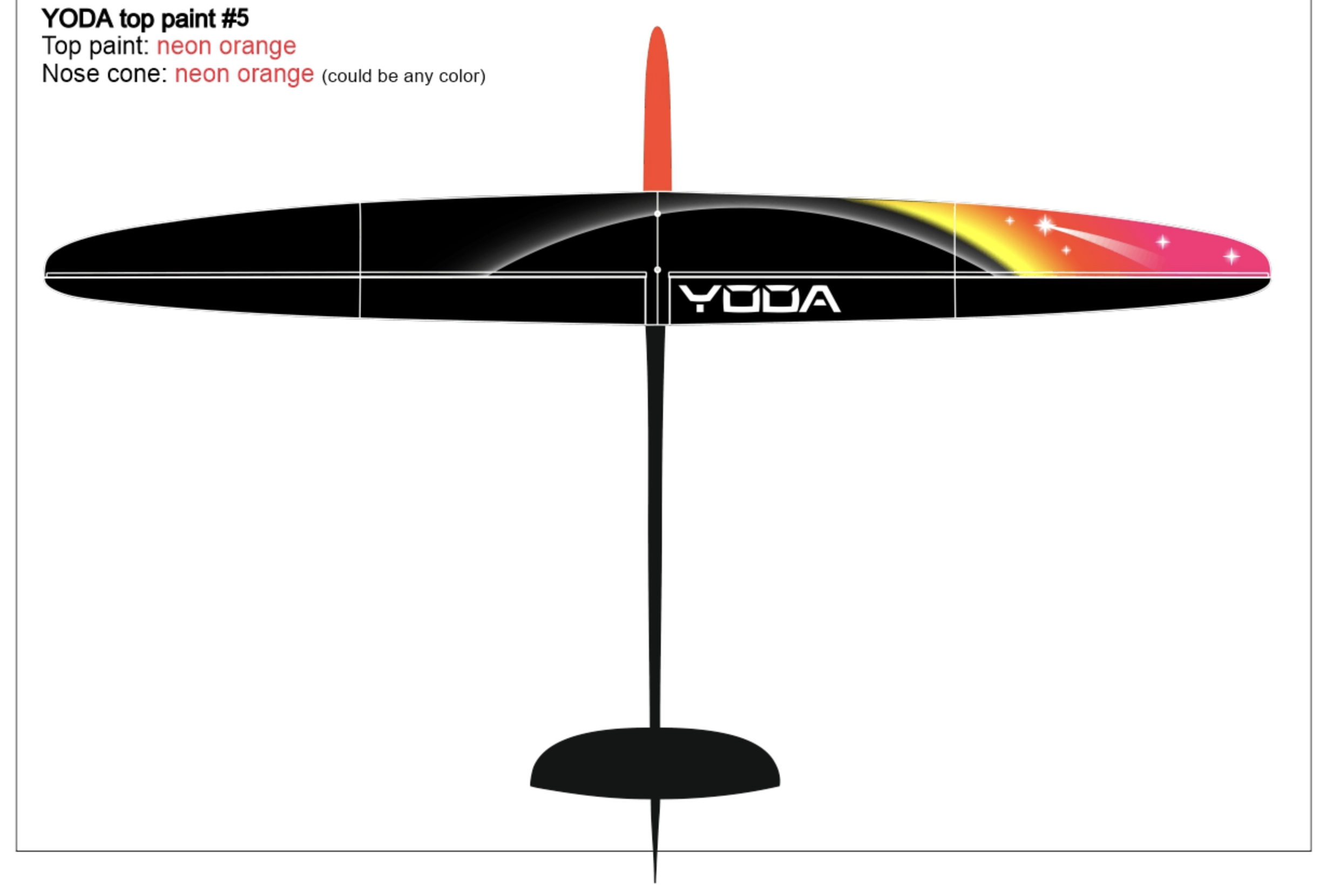

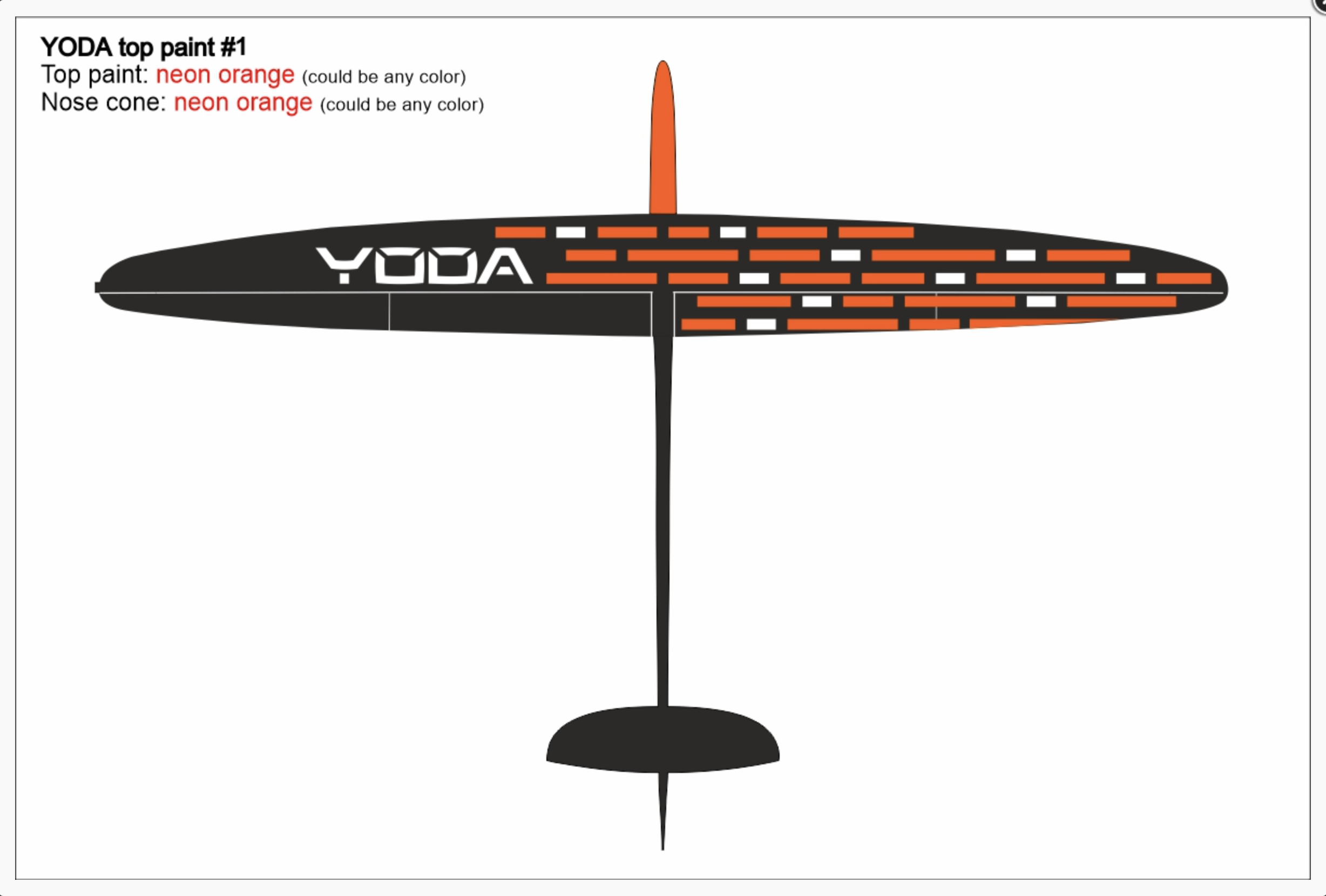

Wing Top Pattern #1 Wing Top Pattern #2 Wing Top Pattern #3 Wing Top Pattern #5

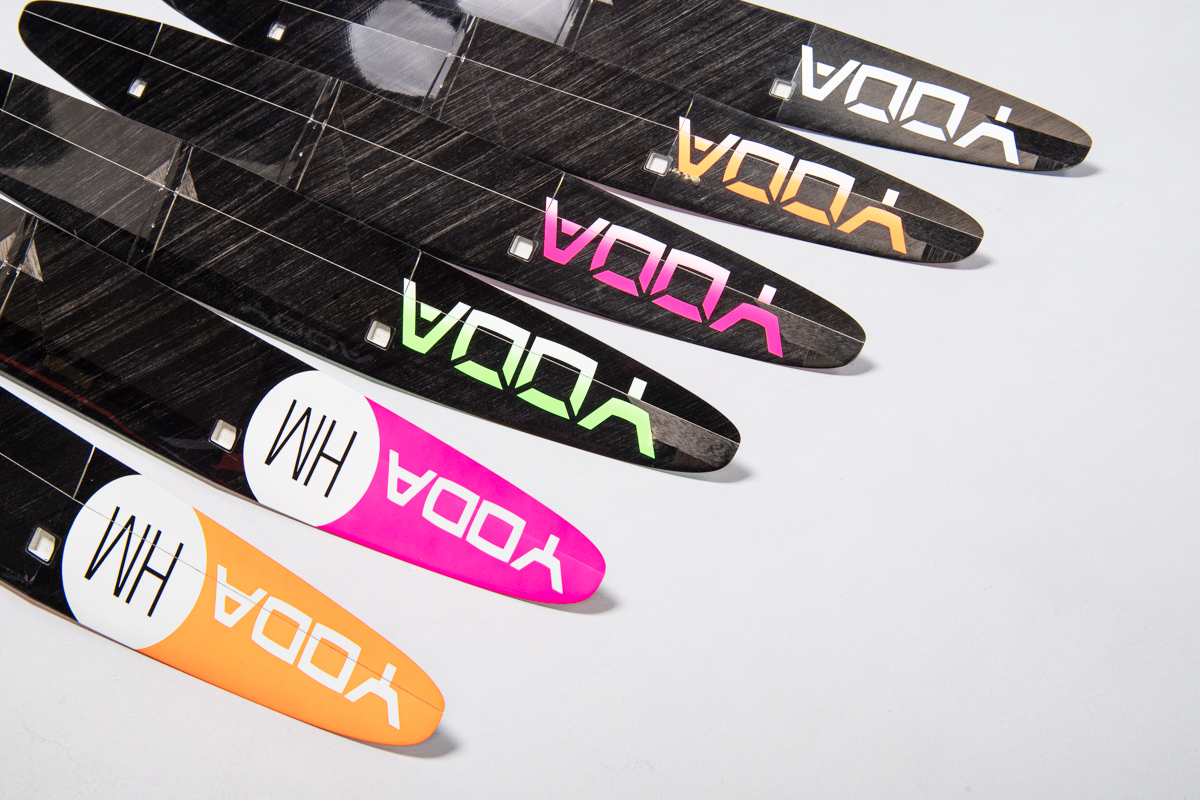

Bottom Wing Pattern Options:.

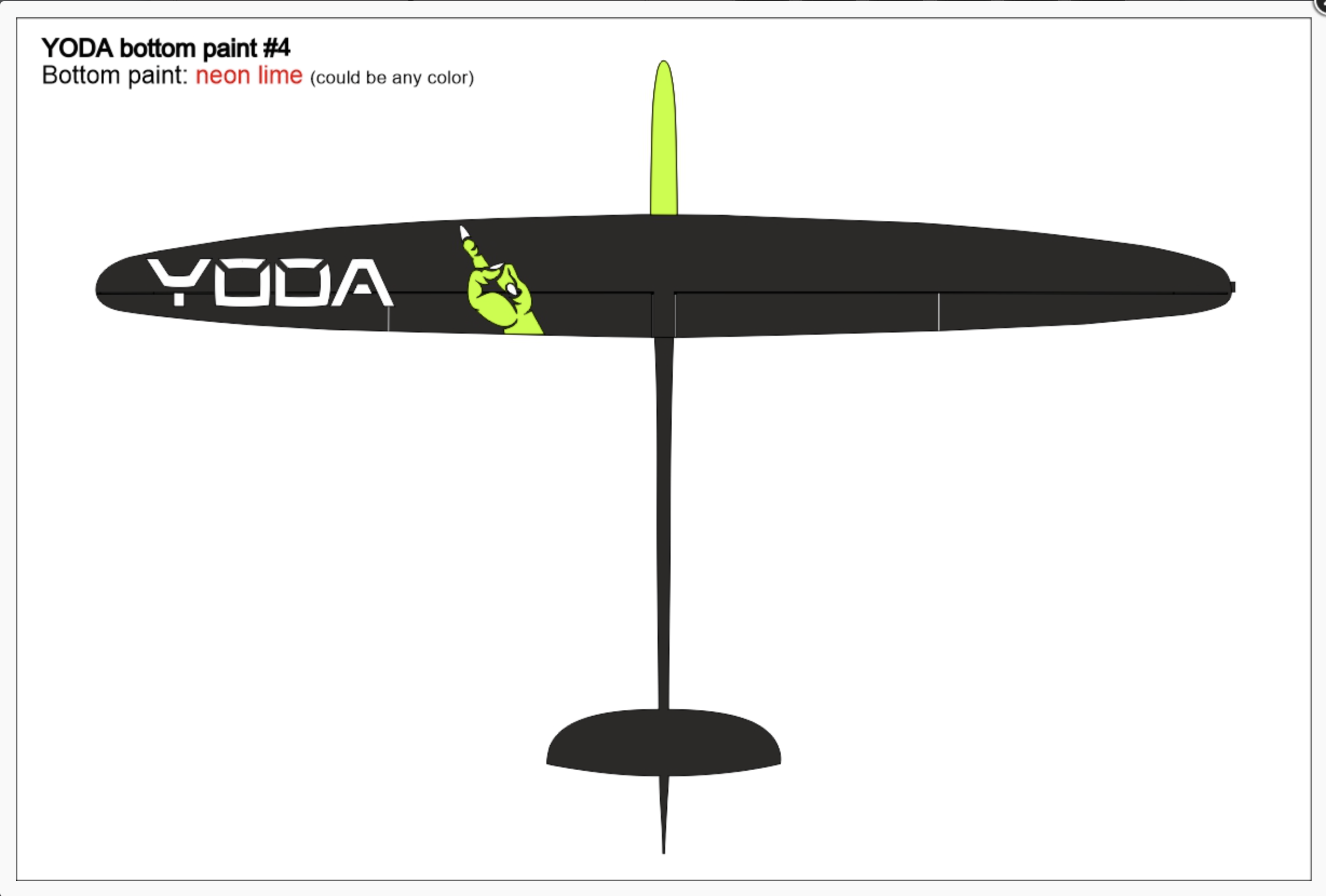

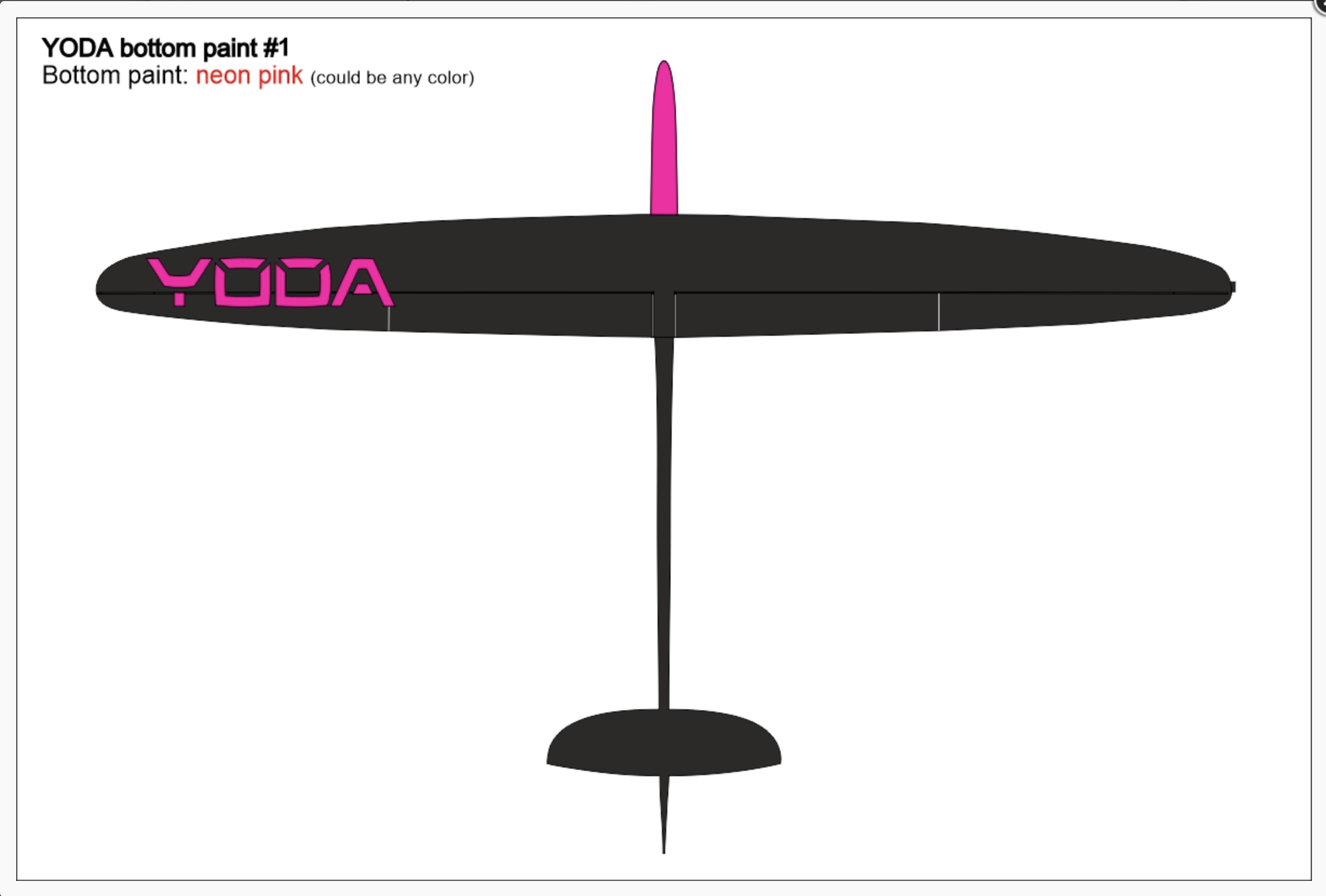

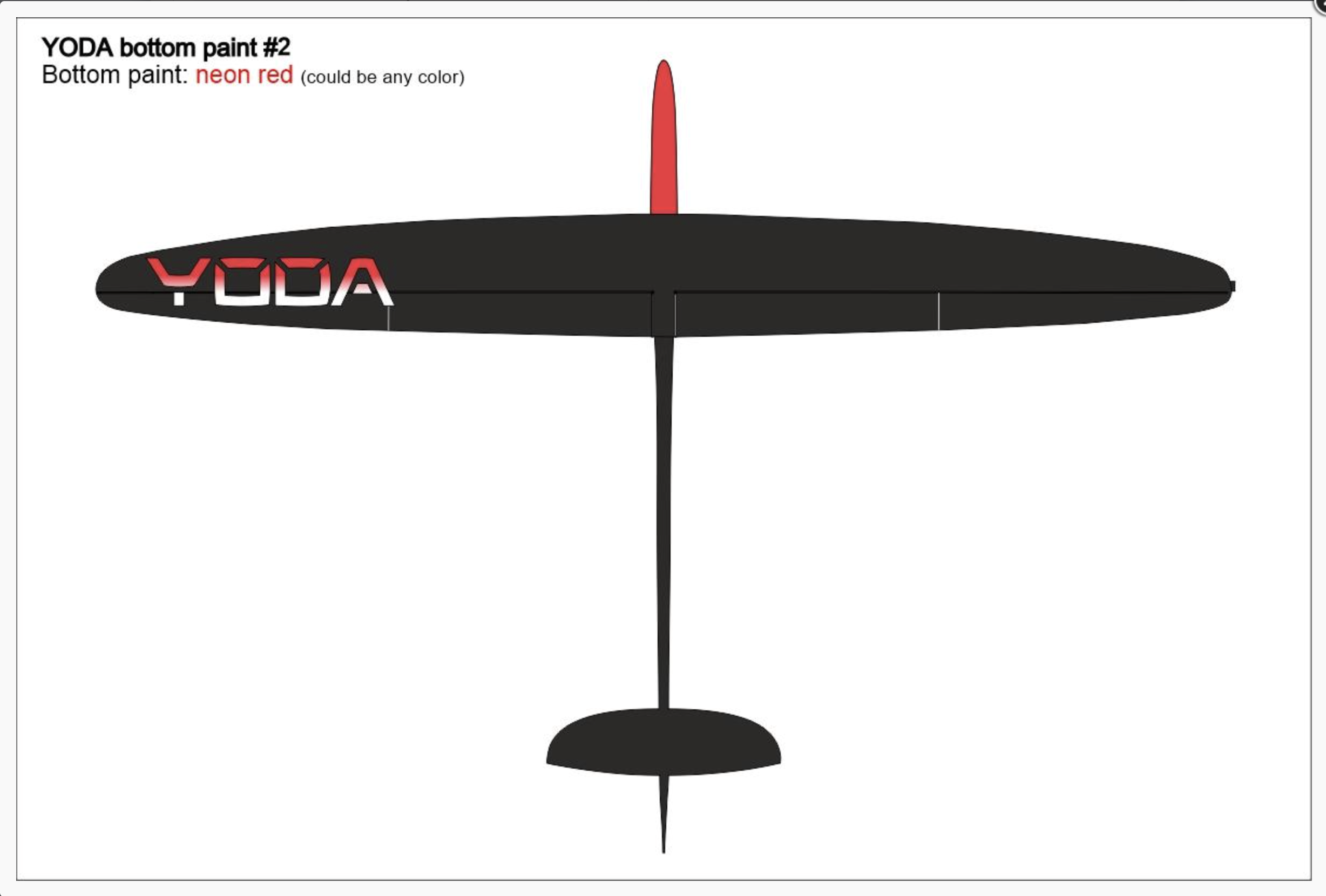

Wing Bottom Pattern #1 Wing Bottom Pattern #2 Wing Bottom Pattern #3 Wing Bottom Pattern #4

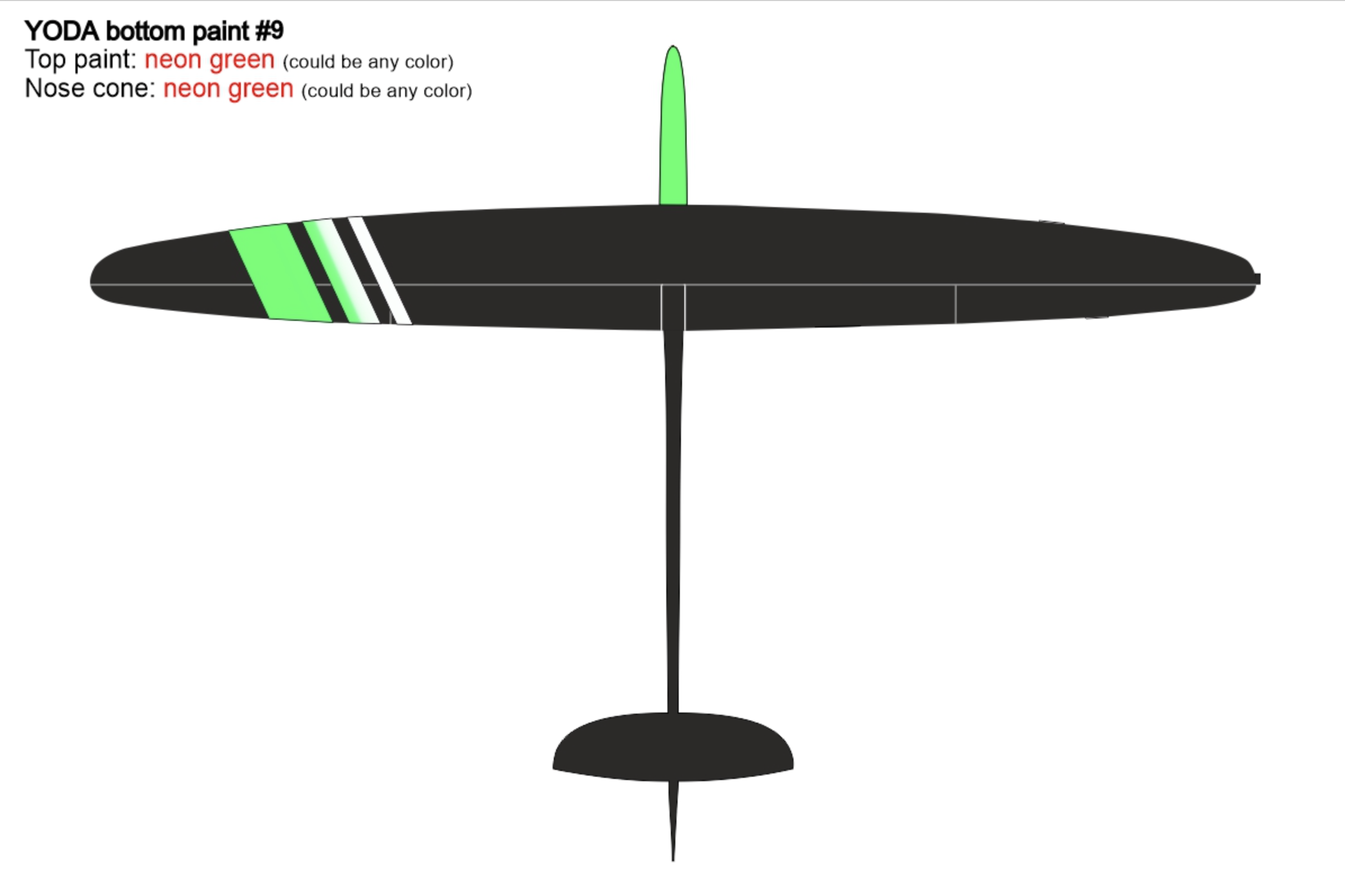

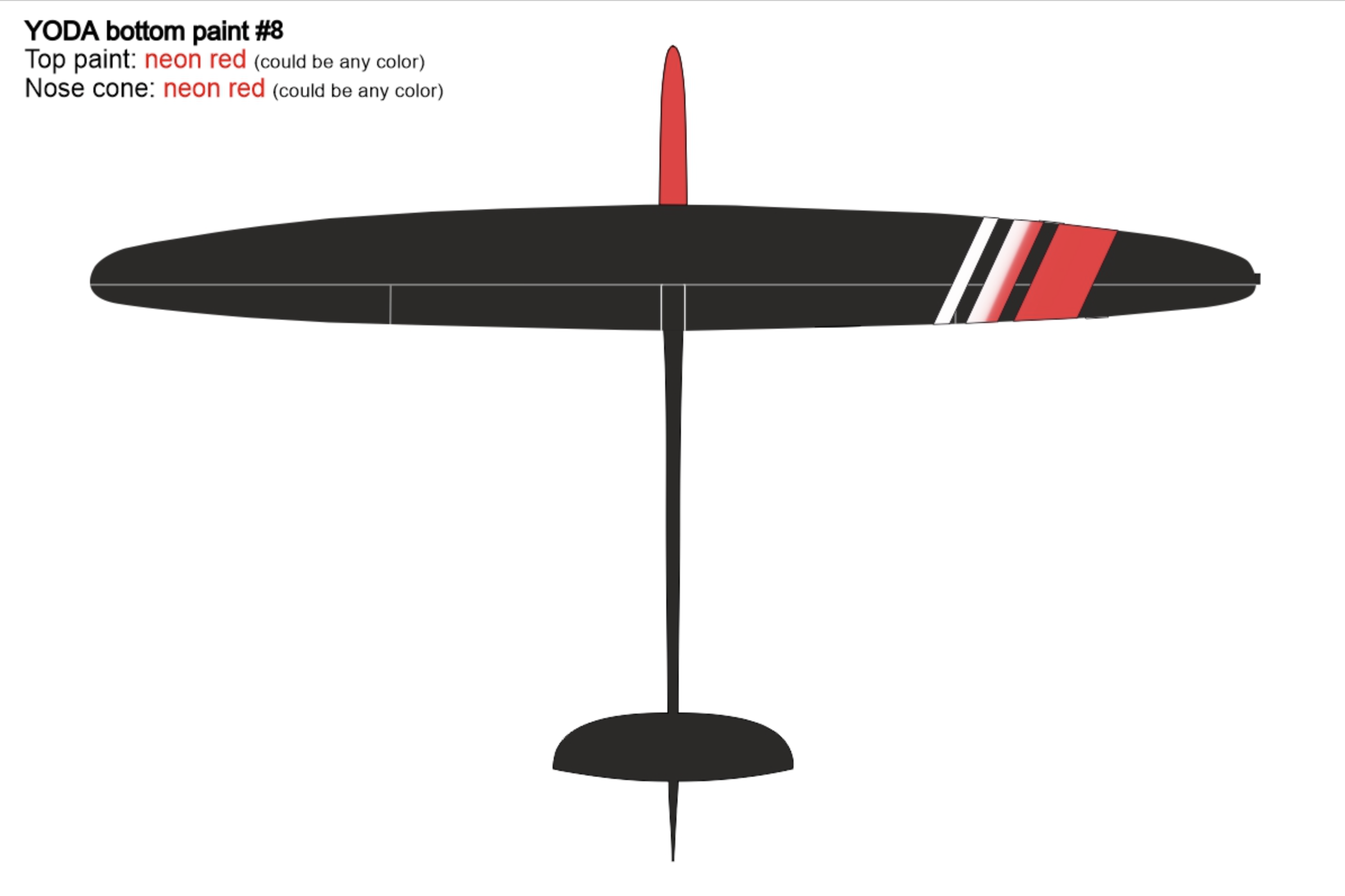

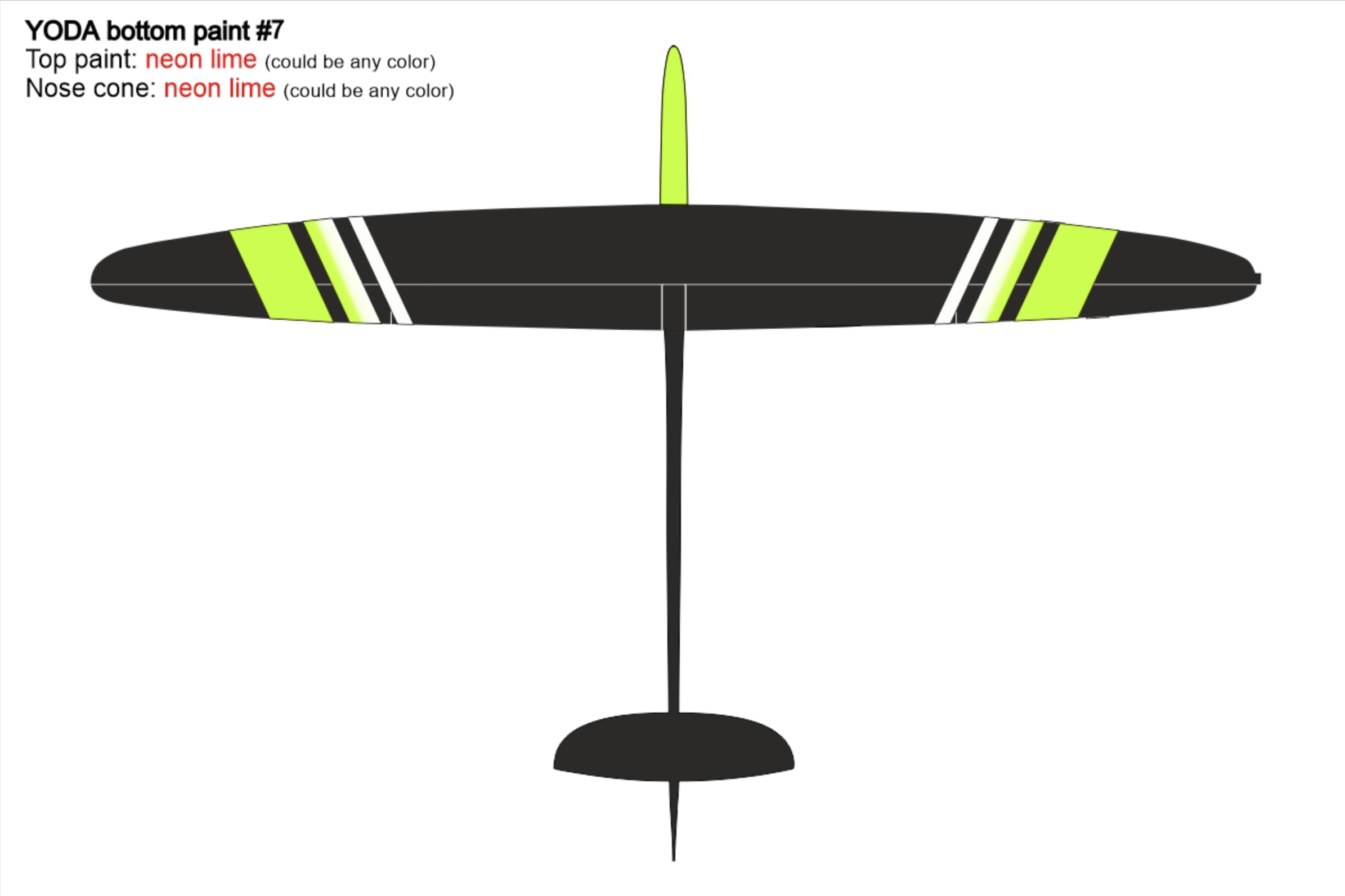

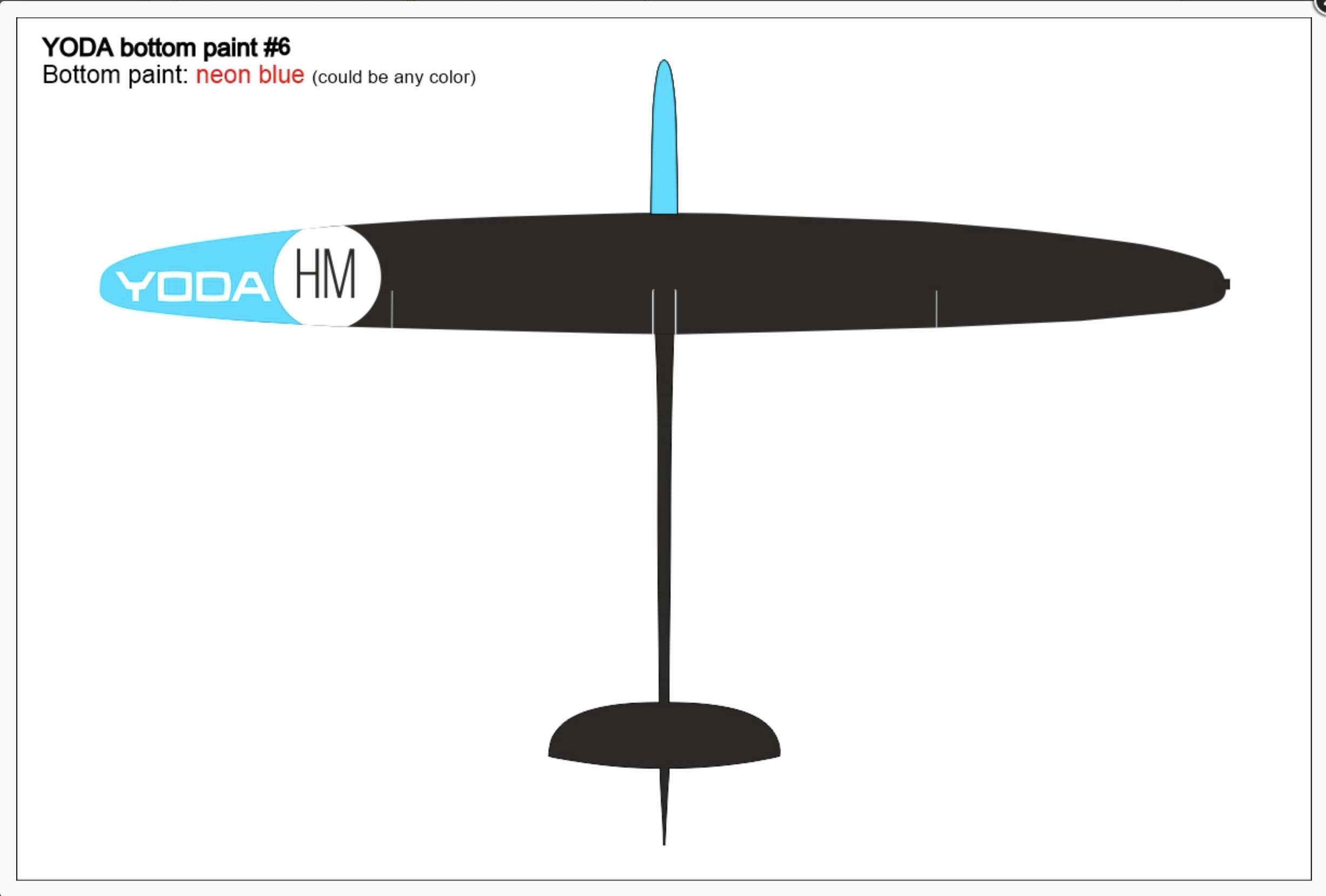

Wing Bottom Pattern #6 Wing Bottom Pattern #7 Wing Bottom Pattern #8 Wing Bottom Pattern #9


Specifications:

Construction

Airframe Weight

Wing Span

Wing Area

Flying Weight

Airfoil

YODA F3K Regular

5.23-5.30 oz.
(149-151 gm)

58.66"

295 sq. in.

8.24-8.42* oz.
(235-240 gm)

JW Yoda

YODA F3K HM

5.23-5.30 oz.
(149-151 gm)

58.66"

295 sq. in.

8.24-8.42* oz.
(235-240 gm)

JW Yoda

YODA F3K HM LITE

TBD

58.66"

295 sq. in.

TBD

JW Yoda

YODA F3K HM STRONG

TBD

58.66"

295 sq. in.

TBD

JW Yoda


* depending on installed equipment

Availability, Pricing, Ordering:

YODA F3K Regular
YODA F3K HM
YODA F3K HM LITE
YODA F3K HM STRONG

YODA F3K w/protection bag - Starting at $885.00







  YODA F3K RTF Package - $435
Build and installation package includes 4x KST X06N and 2x KST X08Nv5 servos - does NOT include RX or RX battery

YODA F3K Servo Set - $230
Includes 4x KST X06N and 2x KST X08Nv5 servos)

Servo Pull-string servo-pulleys (2ea) - $8.00

YODA F3K Wing Template - $16.80

YODA F3K Wing/Fuse Bag - $60.00

YODA F3K Ballast Set - Starting at $79.20




Suggested Components

4 KST X06N servos
(ele, rud, ail)
2 KST X08N servos
(flaps)

2 Pull-string servo-pulleys


Spektrum AR620, Jeti R6 or Futaba R7006

2S LiPo 500mAh

Ballast

Wing Covers

Documents

Building Instructions

Wing Control Horn Template

Aileron Settings Template

Recommended Surface Deflections

Other

YODA F3K Replacement Parts

Model Repair Kit
