The Supra Pro is the latest version of the Supra - a highly competitive, composite, hollow-molded wing sailplane based on a design by Dr. Mark Drela.

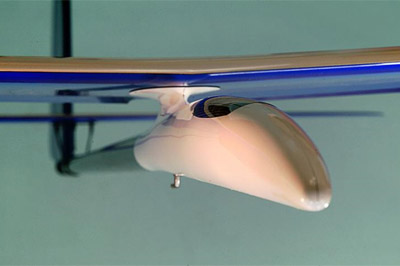

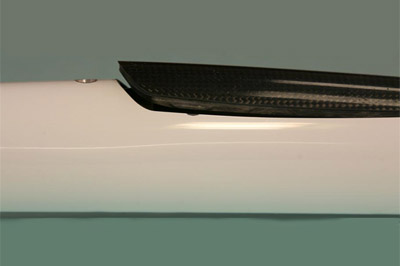

It features a new Fiberglass/Kevlar fuselage with a drooped nose for improved landings, a removable servo tray, a built-in ballast tube ready for a ballast system, carbon pushrods with Teflon housings and a complete hardware package.

Seven different versions of the Supra Pro are available:

  • Supra Pro

    A great thermal duration plane that will out-launch any other thermal duration (TD) sailplane on the market at the incredible low flying weight of 62 oz. built with fiberglass skinned wings.

  • Supra Pro - Competition

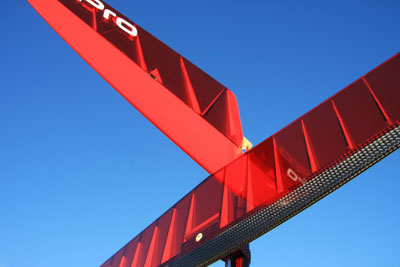

    A super-light, floater Supra Pro. Fiberglass wings feature T800 carbon for extra strength on launch. Tail features an 8% larger molded/built-up D-box horizontal stabilizer and a built-up rudder to minimize nose weight. Carefully built, this version has a flying weight of under 60oz. and a wing loading of ~8oz./sq. ft.

  • Supra Pro - Carbon Lite

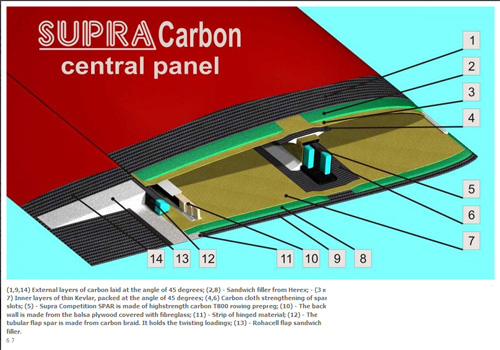

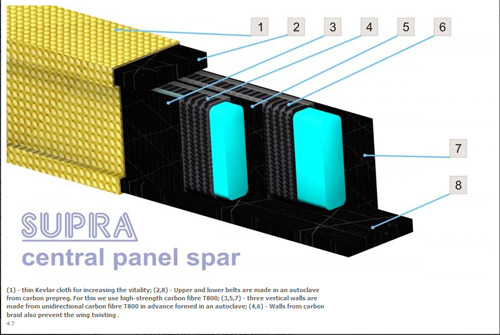

    The ultimate F3J sailplane with a carbon center section and fiberglass wing tips. Designed to take any two-man tow using monofilament tow line.

  • Supra Pro - Competition Carbon Lite

    A carbon center section, light-weight fiberglass wing tips, boom and built-up tail compose the lightest and most competitive Supra Pro.

  • Supra Pro - Full Spread Tow Carbon

    Featuring a carbon wing made with spread tow carbon for a stiffer, lighter and more ding resistant wing.

  • Supra Pro Electric Competition

  • Supra Pro Electric - Competition Lite

Special custom fuselage and wing colors available upon request. $50 surcharge. Surcharge & full payment required in advance, non-refundable, non-returnable.

Competition stabs and fins may be purchased separately - see Supra Pro Replacement Parts

Model will be shipped in a returnable Sportube.


Specifications:

Wing Span

Length

Wing Area

Flying Weight

Wing Loading

Controls

Airfoil

134"

67"

1,052 sq. in.

56-65* oz.

7.6-8.9 oz./sq. ft.

AFRE

AG40/41/42/43

* depending on version and installed equipment

Availability, Pricing, Ordering:

Supra Pro
Supra Pro - Carbon Lite
Supra Pro - Competition
Supra Pro - Competition Carbon Lite
Supra Pro - Full Spread Tow Carbon
Supra Pro Electric - Competition
Supra Pro Electric - Competition Lite


Color Configurator



Suggested RC Components

MKS 6100 or HV MKS 6100 Servos

5-cell 1,500 maH Receiver Battery

JETI 7-ch. or Spektrum 9320T Receiver
Ballast System (Aluminum or Brass)
Removable Skeg

LDS Servo Frame

Tools

Color Configurator

Documents

Supra Pro Building Instructions

Removable Skeg Installation Instructions

Other


Supra Pro Replacement Parts

Model Repair Kit
