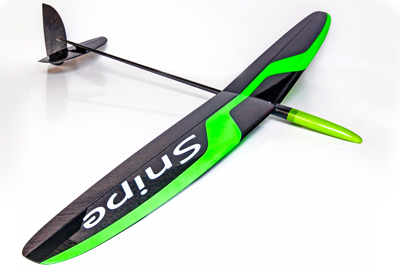

Snipe

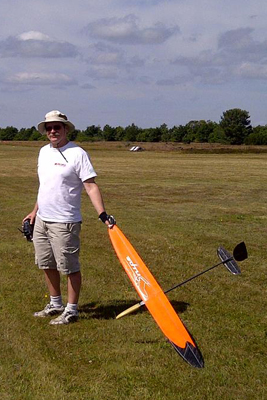

F3K World Champion Joe Wurts, using his experience as an competitor and aerodynamicist, designed his ideal DLG - the Snipe.

The Snipe features both new technology and a design driven by his years of experience in DLG competitions.

The design incorporates a high-aspect wing and new airfoils to yield superior launches and long legs to chase those far away thermals.

Features:

Wing - Full spreadtow carbon (SC) CarboLine 39 skins manufactured using new molding technology provide superior strength and stiffness. This process also produces a hard wing skin of foam that is stable and immune to temperature changes.

Wing Mount - A wing mount employs a cone-shaped mating surface which securely locks the wing to the fuselage with lightly torqued fasteners. High launch stresses are spread over the large cone surface instead of small crush-prone bolt openings. The main front wing mount is made from high strength carbon fiber with an embedded aluminum washer.

Airfoil - The Snipe features a new series of proprietary high performance airfoils designed by Joe Wurts.

Streamlined Pod - A removable nose cone on the stream-lined pod easily provides access to RC gear & ballast.

Tail Boom - A single unit tube design saves weight while yielding a stronger structure. A full-length carbon-fiber tube transfers the load of the ground impact without stressing the nose cone. The wing is directly attached to this tube..

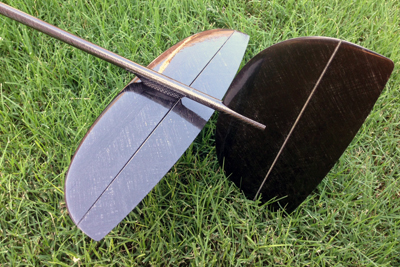

Rudder - An asymmetrical rudder provides a superior response during slow flight.

Horizontal Stab - The stab is mounted below the boom, allowing for better pull/spring setup.

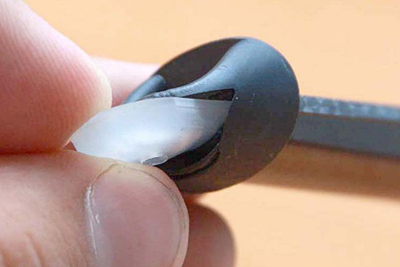

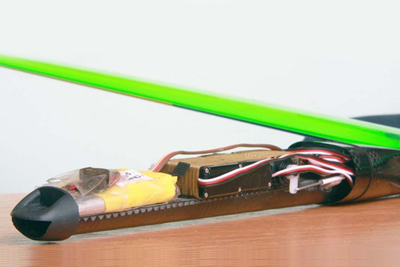

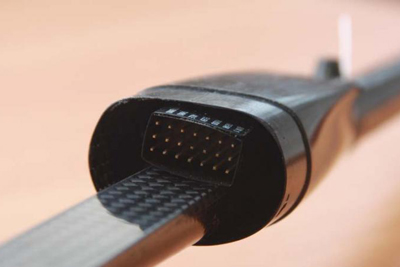

Ballast Provision - The Snipe utilizes the same ballast system as the Blaster 3. A lightweight ballast on-a-stick system inside the fuselage allows for the addition of ballast. Ballast may be added ranging from 1.4-2.8 oz.

Accessories - A complete hardware package consisting of all necessary clevises, screws, carbon pushrods, control horns and the carbon launch peg is included.

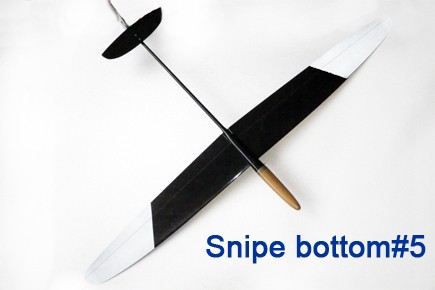

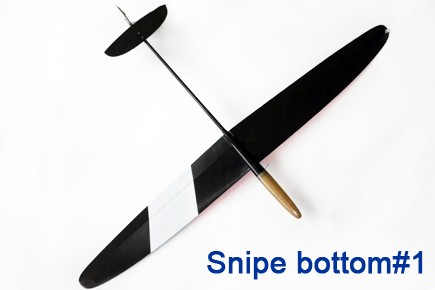

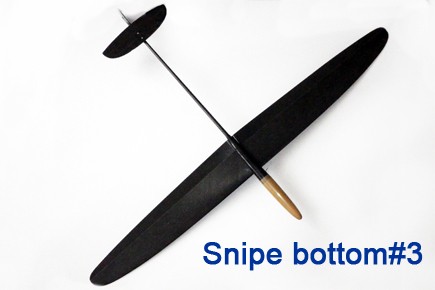

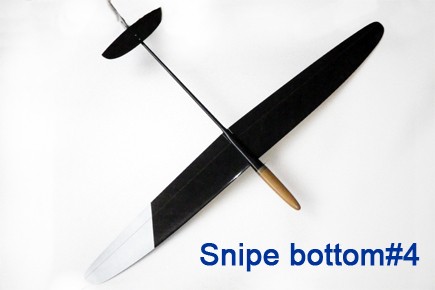

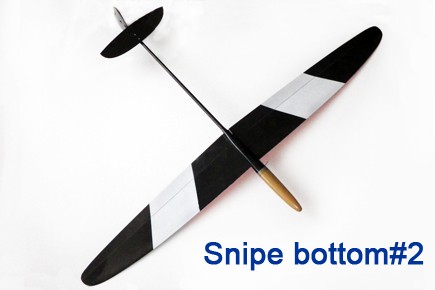

Wing Bottom Stripe Patterns - A variety of stripe patterns is available for the bottom of the wing.


Specifications:

Construction

Airframe Weight

Wing Span

Wing Area

Flying Weight

Wing Loading

Airfoil

Controls

Snipe Standard

3.9-4.2 oz.
(111-118gm)

58.66"

305 sq. in.

8.6-8.8* oz.

4.0-4.1 oz./sq. ft.

JW S200-S203

REF

Snipe Lite

3.6-3.9 oz.
(102-110gm)

58.66"

305 sq. in.

8.3-8.5* oz.

3.9-4.0 oz./sq. ft.

JW S200-S203

REF

Snipe SN (Short Nose)

3.6-3.9 oz.
(102-110gm)

58.66"

305 sq. in.

8.3-8.5* oz.

3.9-4.0 oz./sq. ft.

JW S200-S203

REF


* depending on installed equipment

Availability, Pricing, Ordering:

Snipe Standard
Snipe Lite
Snipe SN (Short Nose)
Snipe SNT (Short Nose & Tail)
$810







Suggested Components

Pro setup:
Four MKS DS 75K-N servos

Sport setup:
Four JR S185 or 4 JR DS188 servos


Spektrum AR6260 Receiver

Ballast

Wing Covers

Tools

Color Configurator

Documents

Building Instructions

Wing Control Horn Template

Aileron Settings Template

Other

Snipe Replacement Parts
